KLEMENS > OX 126

OX 126

Material
Screws: M2.5 steel Zinc plated
Wire guard: Phosphor bronze
Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20m¦¸
Insulation resistance: 5000m¦¸/1000V
Withstanding voltage: AC 1500V/1 Min
Wire range: 26-14AWG 1.5MM2

Mechanical
Temp. Range: -40¡æ~ +105¡æ
MAX Soldering: +250¡æ, for 5 Sec.
Torque: 0.24Nm(3.6lb.in)
Strip length: 6-7mm

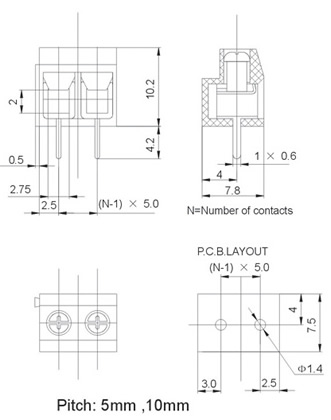

Şemayı görmek için tıklayınız.
