KLEMENS > OX 142R

OX 142R

Material
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 250V
Rated current: 10A
Contact resistance: 20m¦¸
Insulation resistance: 5000m¦¸/1000V
Withstanding voltage: AC 1500V/1 Min
Wire range: 22-14AWG 1.5mm2

Mechanical
Temp. Range: -40¡æ~ +105¡æ
MAX Soldering: +250¡æ, for 5 Sec.
Strip length: 10mm

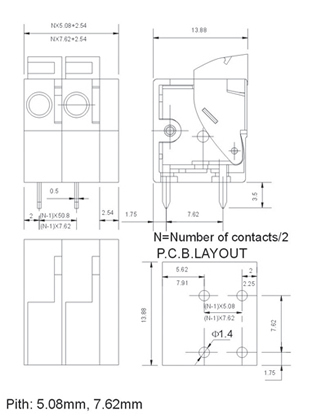

Şemayı görmek için tıklayınız.
