KLEMENS > OX 332 J

OX 332 J

Material
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0

Electrical
Rated voltage: 250V
Rated voltage: 250V
Rated current: 10A
Contact resistance: 20m¦¸
Insulation resistance: 5000m¦¸/1000V
Withstanding voltage: AC 1500V/1 Min

Mechanical
Temp. Range: -30¡æ~ +120¡æ
MAX Soldering: +250¡æ, for 5 Sec.

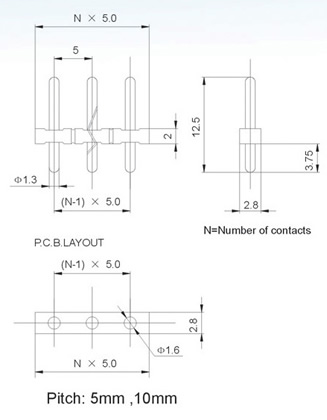

Şemayı görmek için tıklayınız.
