POT - TRIMPOT - DIAL > OX 3386

OX 3386

Specifications
Standard resistance range 10 to 2 megohms
Resistance tolerance ±10% std.
Absolute minimum resistance 2 ohms max.
Contact resistance variation 2% or 3 ohms max.
Adjustablility Voltage ±0.05%
Resistance ±0.15%
Resolution Infinite
Insulation resistance 500 vdc. 1,000 megohms min.
Dielectric strength Sea level 900 vac
70,000 feet 350 vac
Effective travel 280o nom.

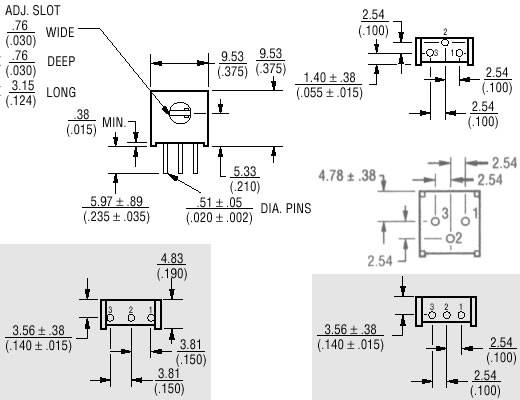

Şemayı görmek için tıklayınız.
